Self-adjusting, Automated

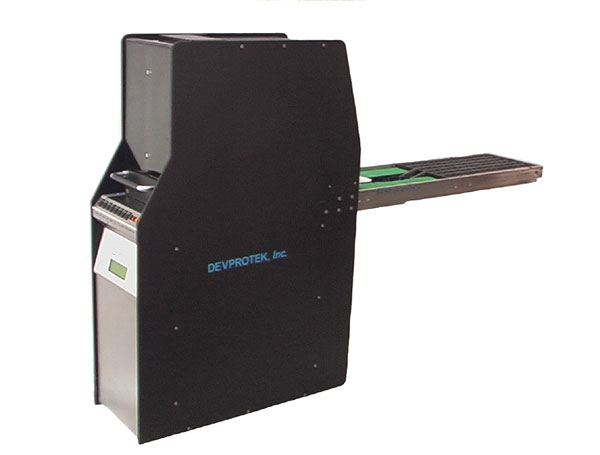

Matrix Tray Feeder - Model FTF-21P



FTF-21P

Tray Feeder Specifications

Magazine Capacity

  • 21 Trays Single Pitch
  • 10 Trays Double Pitch

Maximum Tray Weight

  • .36 Kg

Number of Magazines:

1

Maximum Tray Warpage

  • <.5%

Tray Exchange Time

  • 6 – 10 seconds (based on device and conveyor length)

Tray Aspect Ratio

  • Trays feed along their longest length (portrait)

Pick Location Repeatability

  • ± 0.125mm

Temperature Range

  • 10-35 Cº

Magazine Weight

  • 6.3 kg

Tray Size Alignment

  • Automated, Self-Adjusting
  • Some trays need programmable setup
    adjustments

Pitch

  • 12 mm (Single Pitch) or 24 (Double Pitch)

Electrical Requirements

  • 24 VDC or 42 VDC @ 3 A Peak, 1.5 A Rest

Maximum Tray Size

  • 334 x 180mm

Communication Signals

  • Input driven by I/O or RS-232 communication (optional RS-485)
  • 0 V is logic low
  • 24 VDC is logic high
  • Outputs are open collectors or are configurable to source 24 VDC


Minimum Tray Size

  • 312 x 122mm

Ports

  • One Program, One Serial

Maximum Tray Height

  • 8mm (half pitch) or 18mm (full pitch)

Mass (without magazine)

  • 40 Kg.

Minimum Tray Height

  • 5.5mm

Physical Dimensions:

Length: 1166 mm
Height:: 781 mm
Width: 205.6 mm

Statutory Compliance

  • CE conformance, Semi-S2 and Semi-S8
