TransMate-84, 4-Channel

TransMate-84, 4-Channel SystemDEVPROTEK's TransMate-84 is an OEM product for the integration of SEMI E84 and E23 communication protocols standards into Process Equipment. The TransMate-84 module implements all handshaking functions internally for material transfer. It requires minimal involvement of process tools, and thus simplifies their operation and integration.

Specifications:

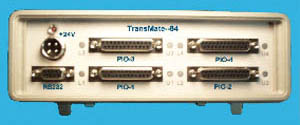

  • E84/E23 Interface: 6 DB-25 connectors (4 in the front and 2 on the back)
  • Serial connection: 1 DB-9 connector
  • Communication Setting: 9600 baud, 8-bit, non-parity, 1-stop bit
  • Message Protocol: ASCII and Emulated Message set of Objective Solutions
  • Software: Win32 DLL and COM DLL driver and Utility program

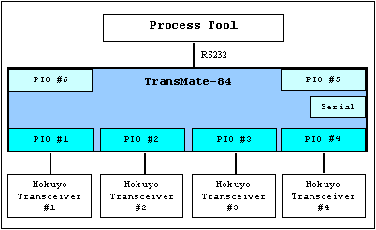

TransMate-84, 4-Channel SystemTransMate-84, 4-Channel Block Diagram
