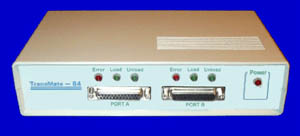

TransMate-84, 2-Channel

TransMate-84, 2-Channel SystemDEVPROTEK's TransMate-84 is an OEM product for the integration of SEMI E84 and E23 communication protocols standards into Process Equipment. The TransMate-84 module implements all handshaking functions internally for material transfer. It requires minimal involvement of process tools, and thus simplifies their operation and integration.

Specifications:

  • Power: 24V @ 500mA
  • E84/E23 Interface: 2 DB-25 connectors
  • Discrete I/O: 8 opto-isolated lines
  • Serial connection: 1 DB-9 connector
  • Communication Setting: 9600 baud, 8-bit, non-parity, 1-stop bit
  • Message Protocol: ASCII
  • Software: DLL and COM

TransMate-84, 2-Channel Block Diagram
